5kW Solar Plant for Residences
Suitable for 20–25 Units Average Daily Consumption, Supporting 2–3 Inverter ACs & Other Loads

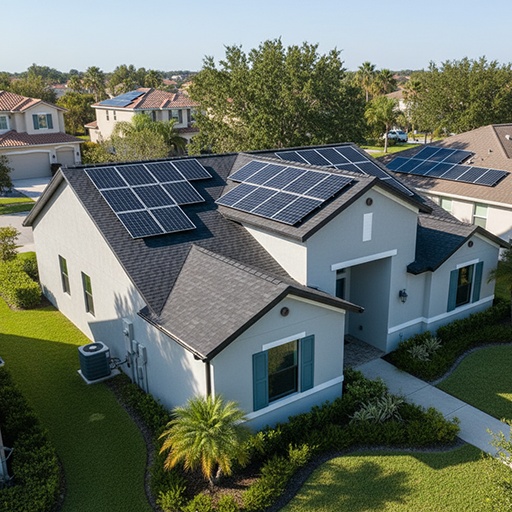

A 5kW on-grid solar power plant is an efficient residential solution designed to produce approximately 20 to 25 units of electricity daily. It is ideal for homes running 2 to 3 inverter air conditioners alongside other household appliances. Typically, the system consists of 10 solar panels rated between 500 to 550 watts each, connected through a central string inverter or micro inverters for each panel. This setup maximizes efficiency, manages shading effectively, and offers better power output. The panels are mounted with a south-facing tilt angle of 10 to 15 degrees, optimized specifically for Kerala’s geographical conditions to ensure maximum solar exposure. Durable mounting structures made of galvanized iron (GI) or anodized aluminum provide long-term corrosion resistance.
Safety is a critical aspect of this system, ensured by a four-point earthing system that includes DC earthing, AC earthing, structural earthing, and lightning arrester (LA) earthing. High-quality earthing accessories from the Excel brand are used, including lightning arresters and earth rods with copper bonding thickness of over 250 microns for LAs and 100 microns for earth rods. Copper down-conductors (Cu10), earth baskets, and rods form an effective grounding network that protects the system from electrical surges and lightning strikes.
Modern 5kW solar plants integrate advanced technologies such as Half-Cut cell, Mono PERC, and TOPCon panels for higher efficiency and enhanced low-light performance. Hybrid or string inverters come equipped with MPPT (Maximum Power Point Tracking), remote monitoring via mobile apps, and automatic switching between solar, grid, and battery power sources. Additional smart features include IoT-enabled fault alerts, smart net metering, and automated cleaning systems, which improve system reliability and ease of maintenance. Leading brands such as LONGi, Trina Solar, Waaree Energies, Vikram Solar, and RenewSys provide trusted, high-performance components backed by robust warranties. System Safety and Earthing Protection Safety remains a core priority in a 5kW system. The setup follows a four-point earthing scheme covering DC, AC, structural, and lightning arrester (LA) earthing for complete electrical safety. Earthing components from Excel ensure superior protection—lightning arresters and earth rods come with copper bonding layers exceeding 250 microns for LAs and 100 microns for earth rods. Additional copper down-conductors (Cu10), earth baskets, and grounding rods maintain strong and stable fault protection against voltage surges and lightning strikes. Technology and Efficiency A 5kW solar plant incorporates advanced Mono PERC, Half-Cut Cell, and TOPCon technologies for superior efficiency, even under cloudy or low-light conditions. These technologies reduce power losses, enhance durability, and deliver consistent energy generation throughout the day. The inverters, equipped with MPPT (Maximum Power Point Tracking), dynamically optimize energy output by adjusting to varying sunlight intensity. Most systems also include Wi-Fi or Bluetooth-enabled remote monitoring apps, enabling users to track daily generation, performance analytics, and fault notifications in real time. Modern hybrid inverter options intelligently manage power between solar panels, batteries, and the grid—ensuring reliable power even during outages. For rooftops with shading or complex structures, micro inverters are recommended, as they allow each panel to operate independently, improving total system yield and reducing downtime. Important Things to Consider Designing a 5kW on-grid solar system requires careful consideration of average daily consumption, available roof area, sunlight exposure, and local net metering policies. The system typically includes: 10 solar panels (500–550W each) String or Hybrid inverter AC & DC protection devices (SPD, MCB, MCCB) ACDB (AC Distribution Board) and DCDB (DC Distribution Board) 4–6 sq.mm DC cables and MC4 connectors Net meter and earthing kit The installation must ensure optimal tilt and orientation for maximum solar gain and use durable mounting structures for long-term stability. Applications: Suitable for urban homes, villas, and small commercial spaces with stable grid supply and medium-to-high energy usage.
New Technologies Modern 5kW solar systems are equipped with the latest innovations that enhance performance, reliability, and convenience. Mono PERC, TOPCon, and Half-Cut Cell panels have become the standard for high-efficiency generation and longer life spans. These panels perform exceptionally well under partial shading and diffused light conditions—perfect for Kerala’s variable weather. Smart string inverters with Wi-Fi or IoT capabilities enable seamless remote monitoring and quick fault detection. Hybrid inverters efficiently balance solar, grid, and battery power, ensuring uninterrupted energy availability. Additional smart features include IoT-based energy analytics, automated cleaning systems, and smart net meters for accurate power tracking. These advancements make today’s 5kW solar plants not only more intelligent and efficient but also future-ready, offering homeowners greater control, safety, and long-term savings.
Best Brands (Each Component with Advantages, Technology, and Expertise) LONGi Solar LONGi is a global leader in monocrystalline panel manufacturing. Its Hi-MO series features PERC and Half-Cut Cell technology that ensures high efficiency, superior low-light performance, and exceptional reliability—ideal for residential rooftops with limited space. Adani Solar (India) Adani Solar’s Mono PERC and Multi-Busbar (MBB) panels offer outstanding conversion efficiency and durability. Their modules are built to withstand harsh Indian conditions and minimize degradation over time. With robust R&D and backward integration, Adani provides dependable, cost-effective solar solutions backed by solid warranties. Rayzon Solar (India) Rayzon’s Mono PERC and TOPCon modules are engineered for high thermal performance, better yield in shaded conditions, and long-term stability. Their automated production process and stringent quality control ensure strong mechanical design and minimal degradation—making them ideal for Indian residential rooftops. Trina Solar A global Tier-1 manufacturer, Trina Solar’s N-Type and Mono PERC modules achieve efficiencies up to 21.5% with excellent PID resistance. Trina panels are known for robust performance, longevity, and strong after-sales support. Waaree Energies (India) Waaree’s Mono and Polycrystalline panels provide cost-effective yet reliable options for residential use. Each module undergoes EL testing to detect micro-cracks and ensure long service life. Waaree also offers excellent customer service across India. Vikram Solar (India) Vikram Solar’s SOMERA Series (Mono PERC) modules are known for high reliability and endurance. Their panels are designed to perform efficiently under high temperatures and humidity, making them perfect for Indian climate conditions.
